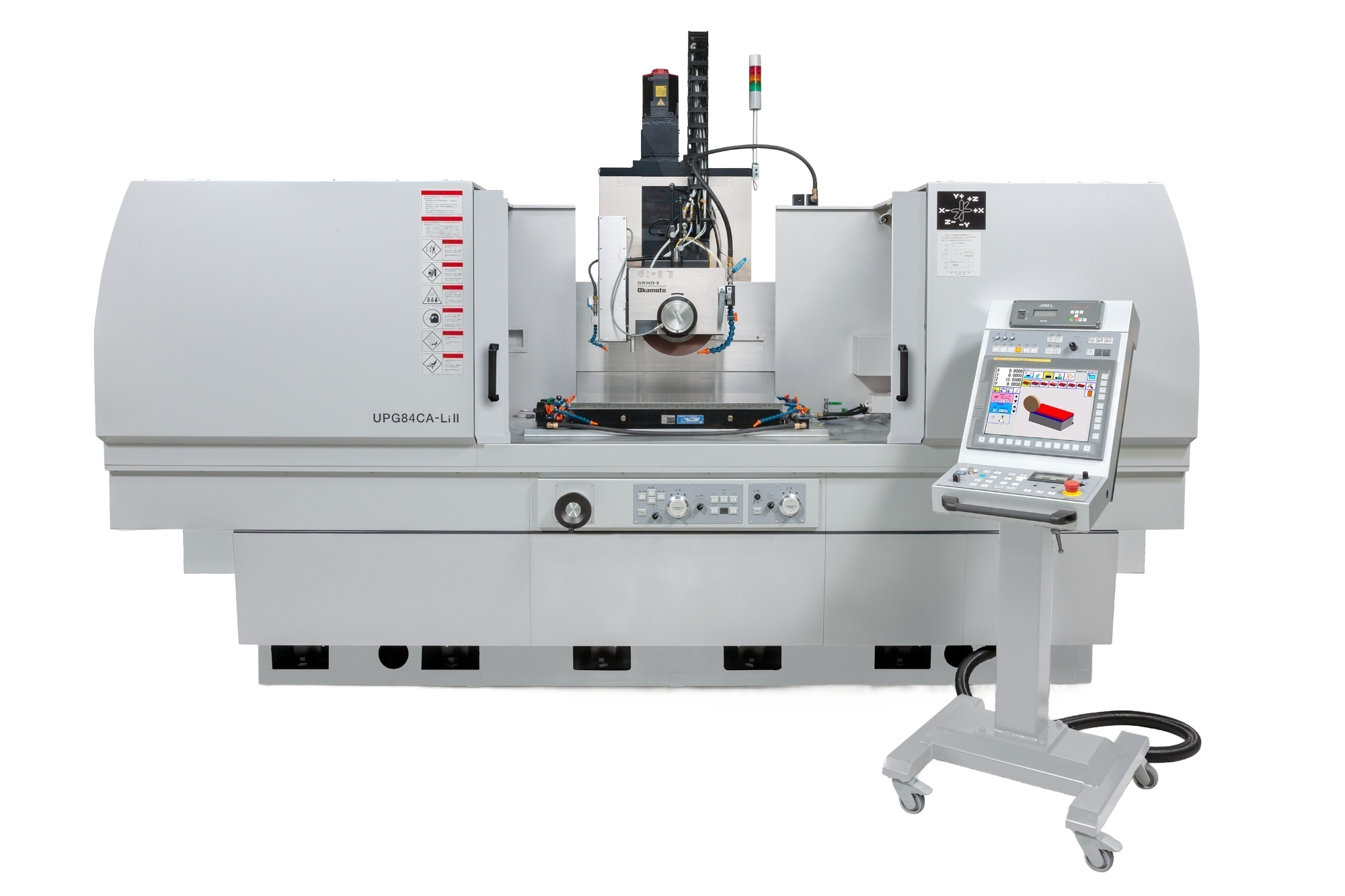

SERIES line-up

UPG63CALi2・UPG84CALi2・UPG106CALi2

CONCEPT

• Equipped with a static slide and linear motor drive on the sliding structures.
• Surface grinding, simple wheel molding, automation of dressing conditions, and on-machine measurement achieve the highest level of grinding!

FEATURE

• The world-famous iQ interactive software can be easily operated by touching the icon on the screen
• This is a surface grinder equipped with an automatic processing data creation function. Simply enter the gross and fine grinding allowance and then the particle size to automatically create optimal grinding and dressing conditions.
• Over-hangless T-frame structure and the table longitudinal feed is V-V shape
  • The column type is easy to mount large workpieces.
  • The table adopts a double cylinder method, and the loading weight has been greatly increased.
  • Stable machining is possible with a full table stroke.
• This machine supports surface grinding/pitch shape/contouring/form grinding and various grinding methods.

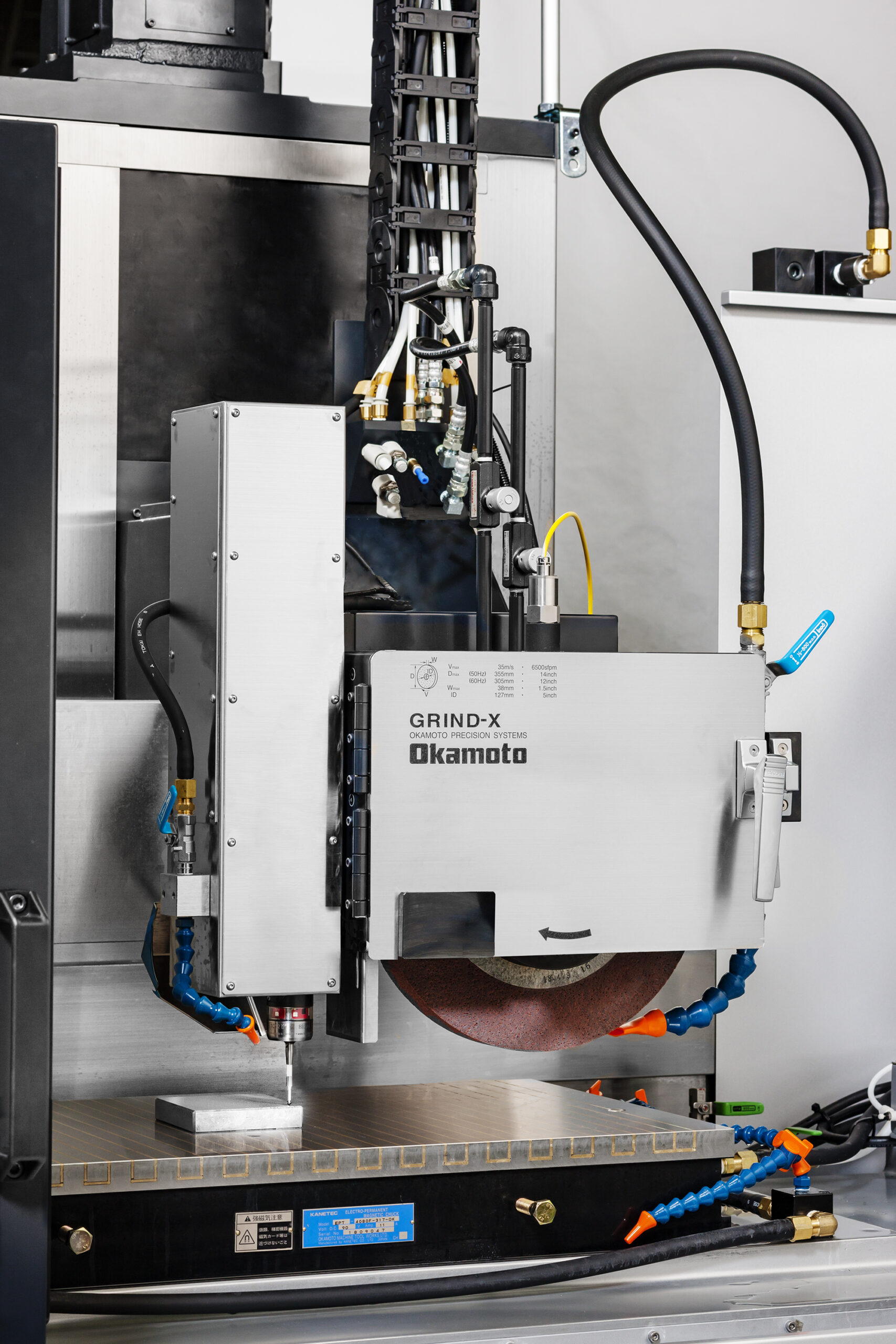

• An on-machine measuring device and CCD camera can be installed as an option. Realizes an automatic cycle of measurement and grinding without removing the workpiece.
• Hydrostatic spindles can handle grinding that requires high-precision flatness/surface roughness.
• This machine can be used as a forming grinder. We also support automation of designated work.
