SERIES line-up

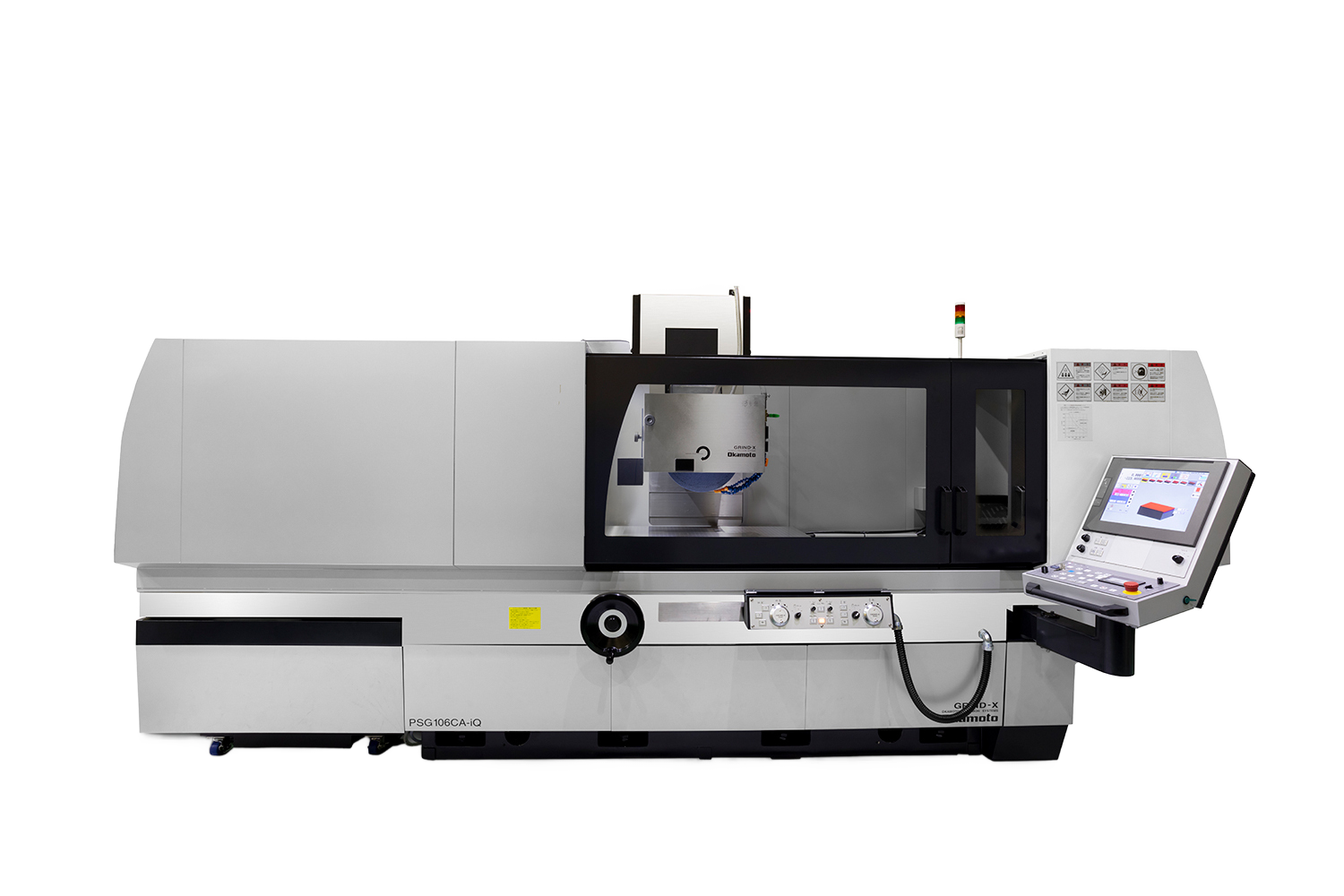

PSG63CA-iQ・PSG64CA-iQ・PSG66CA-iQ・PSG84CA-iQ・PSG104CA-iQ・PSG106CA-iQ

CONCEPT

• It is equipped with an automatic setting function of grinding and dress condition which shorten the data input with a graphical screen display.

FEATURE

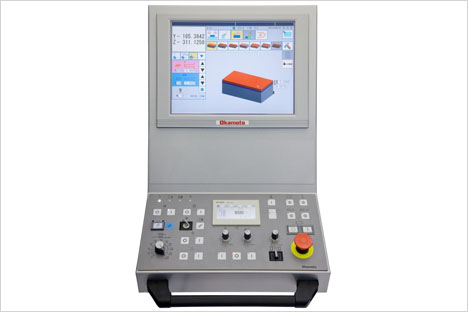

• There is no character in the operation screen, touch i-con and easy input.
• The CA-iQ series was equipped with an automatic data making function in a surface grinder for the first time. Input Total stock removal and Fine Stock removal, and input wheel grid size, then can make the most suitable grinding condition and dress condition.

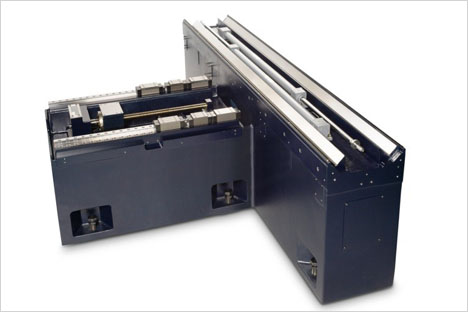

• Adopted V-V slide way system for excellent straightness and T-shape frame integral structure is no-overhang ,Wide open table loading area by Column traveling type of machine is easy large size of workpiece. Adopted double cylinder system increase table loading capacity Since there is no overhang work setting area from even table full stroke which is providing more stable process.
• Selectable for various grinding mode such as Surface grinding, Pitch grinding, Contouring grinding and Formed grinding.
• Further reduce cycle time by overhead dresser as option for Coarse grinding and Fine grinding with Table mount dresser.
• Hydrostatic slide system as an option, also available with high accuracy mirror finish.

DETAILS FOR WORKPIECE
