SERIES line-up

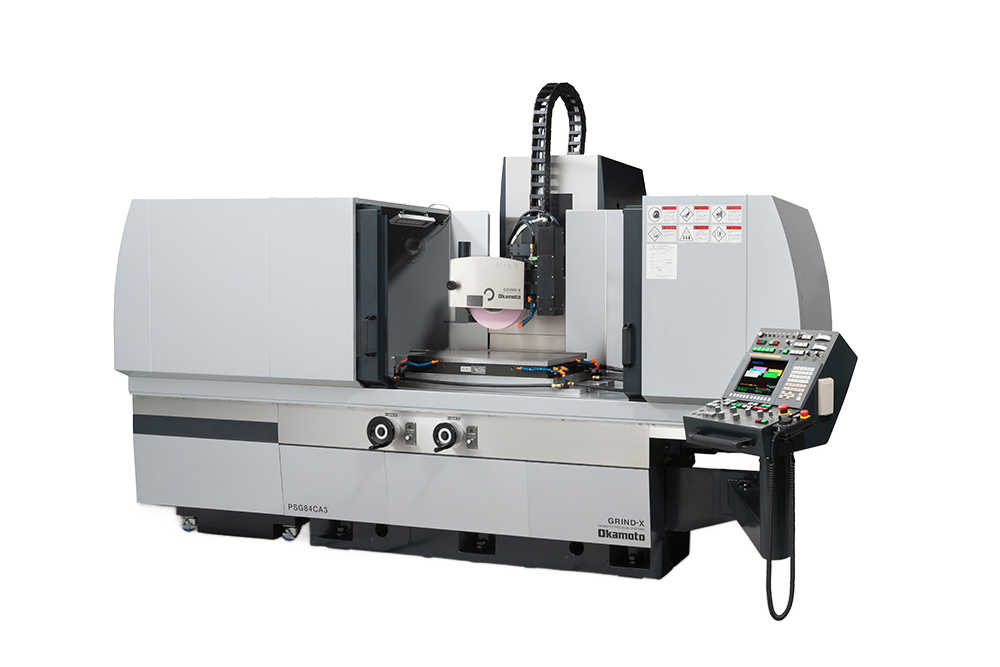

PSG64CA3・PSG84CA3・PSG104CA3

CONCEPT

• Simultaneous 2-axes or 3-axes control CNC and table ball screw drive is able to have on machine measurement and versatile grinding process.

FEATURE

• Overhang less T-shape rigid frame and crossfeed, vertical guide and table longitudinal adopted linear roller guide with ball screw drive.
• Automatic surface grinding cycle, shift plunge grinding ,traverse grinding ,multi-position grinding ,crowning grinding ,taper grinding ,high-speed grinding /slow-speed creep grinding is possible. Also possible have index work by add index device as options.
• Table mount three-direction dresser is standard, rotary dresser and swing type universal forming dresser also available as option.

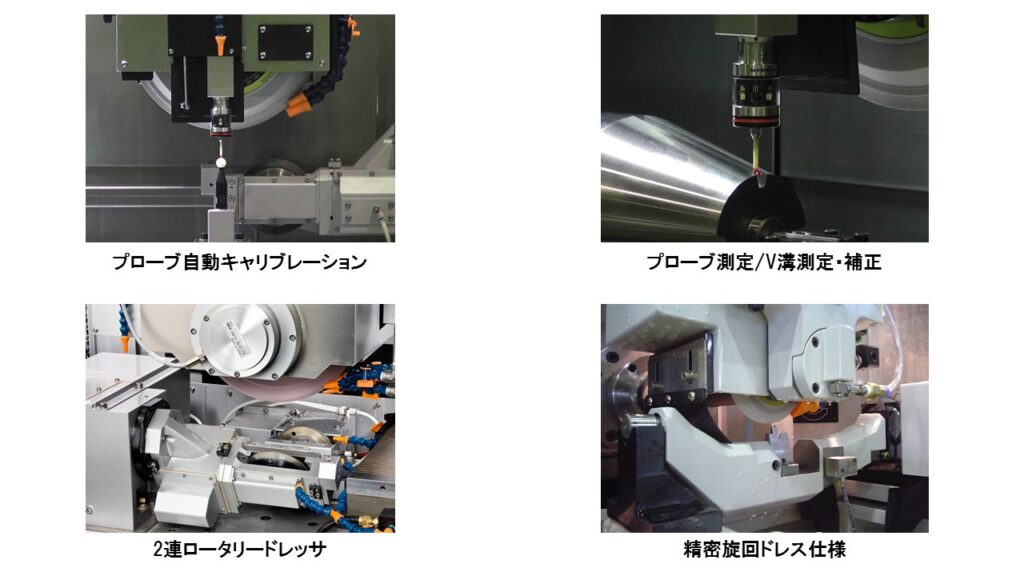

• Adopt table ball screw drive is possible to measurement by touch probe or CCD camera for measure the shape without remove workpiece from machine.
• Simultaneous three-axes control is possible as well as form grinding.Offer suitable application depend on workpiece.

SPECIFICATION

• PSG-CA3 series specifications is different on workpiece, please contact to nearest sales office.
