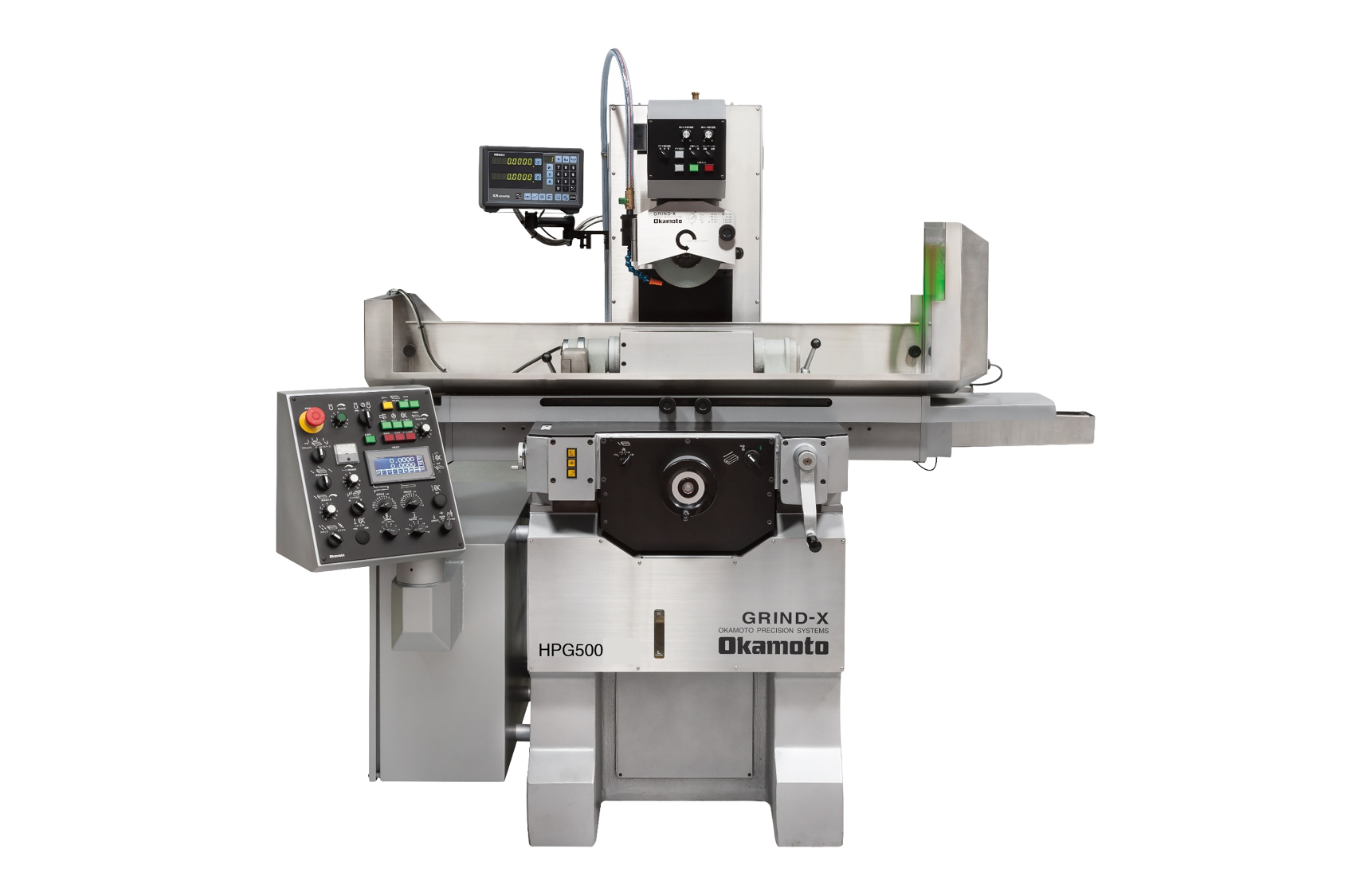

High Precision Form Grinding Machine
HPG500
NEW model to achieve high accuracy level in the field
SERIES line-up
HPG500
CONCEPT
- higher Vertical & Cross positioning accuracy Form Grinder with non hydraulic oil system.
FEATURE
- Vertical and Crossfeed minimum setting is 0.1μm. Precision specifications by scraping alignment for longitudinal and crossfeed slide adopted V-V sliding way.
- Rigidity ratio of grinding wheel spindle is 1.45 times conventional machine. Increase the frame size for stability of the crossfeed.
- The Linear guide construction eliminates the thermal displacement, oil waste and reduces CO2 emission 199.2Kg.
- Vertical and Crossfeed scale feedback is standard specification. Wheel spindle motor 2.2kW and wheel spindle inverter also standard specification.
